Products Description
OVERVIEW
Types
• Reverse twisted, single twisted and double twisted
Materials
• High quality low carbon steel wire (Electro galvanized, hot dipped galvanized, PVC coated, Hot sprayed), in blue, green, yellow and other color.
Use
• Suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing in railway, highway, etc.
Packing
• In coil & with pallets as requested
Assortment:

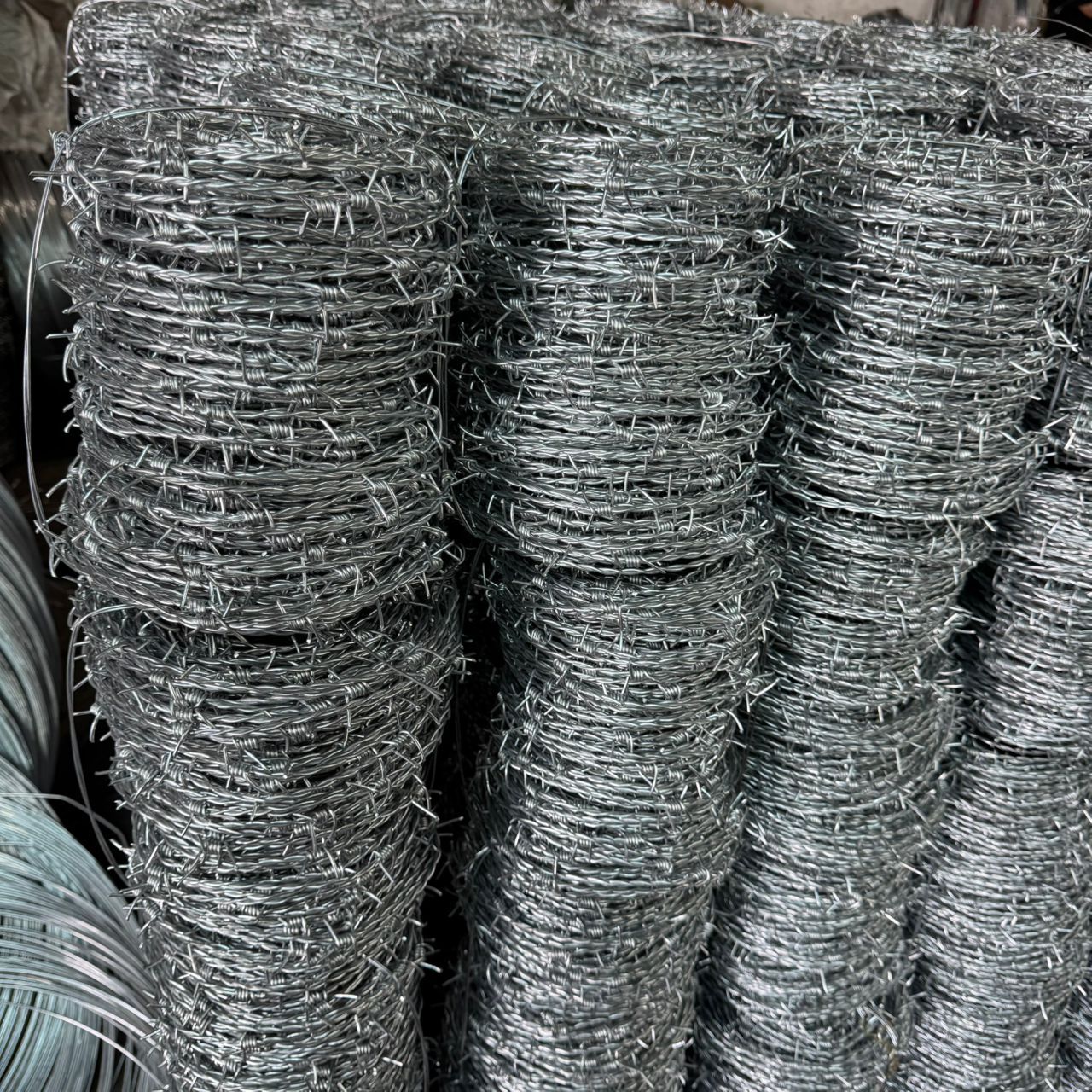

• Single twisted Barbed Wire
• Double twisted Barbed Wire
• Galvanized barbed wire
• PVC coated barbed wire
Barbed Wire | ||||
Strand x Barb | Approximate Length per KG in Meter | |||
in B.W.G. | Barb Spacing 3" | Barb Spacing 4" | Barb Spacing 5" | Barb Spacing 6" |
12x12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.659 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.406 | 19.3386 |
*Special specifications can be produced by the customer’s requirement. | ||||
